Inventor sheet metal thickness parameter. Sheet metal defaults are the driving force in the model and direct which rules and user overrides will be placed in the sheet metal parameters. The thickness parameter updates the part thickness when you change the sheet metal rule or when you override the thickness manually in the sheet metal defaults dialog box. Sheet metal rules are a collection of instructions that can and usually do fill the sheet metal parameters as well as guide the feature behavior. Right click a body and select edit sheet metal rule in the context menu.

Inventor tutorial parameter animator duration. However you can currently achieve this in two ways. Falke tieldal 32 720 views. You can also select a material type unfolding rule and sheet thickness that is different from the value specified in the sheet metal rule.

Expand the solid bodies folder in the browser. Manually override the use thickness from rule option. Sheet metal parameters in a read only state. Sheet metal features are created using a set of sheet metal parameters such as thickness and bend radius.

In version 2010 we introduced new sheet metal properties controlled by the units in the document settings dialog provided that hotfix user needs the ability to set a different unit as cm. To assign body thickness do one of the following. Simply manually type the parameter in and inventor will allow it. How to set up drawing title block to reference the thickness paramater from a sheet metal model.

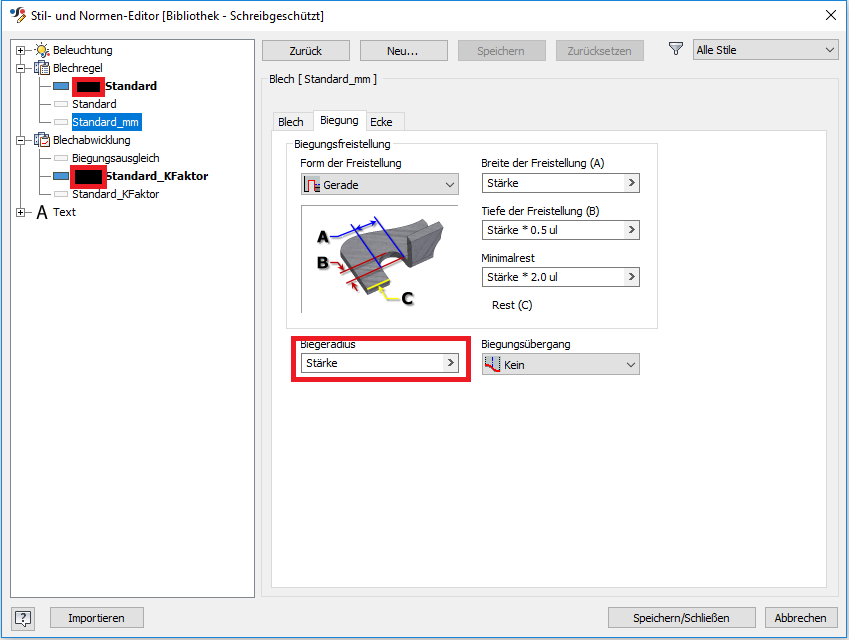

Access the style and standard. How the corner relief on a flat blank of aluminum of a given thickness differs from the corner relief for stainless steel of a different thickness is determined by the options and values defined. You use the sheet metal defaults dialog box to select a sheet metal rule. Manually enter the parameter in the style editor.

Use the sheet metal defaults dialog box to change the options and parameters defined by the selected sheet metal rule for the active sheet metal part. This workflow has been discussed previously in displaying extent parameters of flat pattern in parts list the inconvenience was that you did not have the option to use other units apart from cm. This is a better option. Sign in to follow this.

Use the context menu option edit sheet metal rule to manage the thickness of individual bodies in a multibody part file. You may have noticed that inventor will permit you to pick a parameter from a recent use list but there is no list parameters option here.
